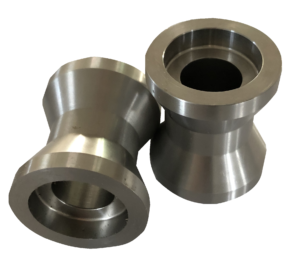

Rollers
The rollers are made of galvanized steel or stainless steel with or without maintenance-free stainless steel ball bearings.
Part no. | Dimensions (mm) | Material | Type of bearings* | Weight (g) |
---|---|---|---|---|
RL3939 | Ø 39x39 | Stainless steel | Without bearings | |
RL3945 | Ø 39x45 | Stainless steel | Without bearings | |
RL3946 | Ø 39x46 | Stainless steel | Without bearings | |
RL3948 | Ø 39x48.5 | Stainless steel | Without bearings | |
RL3939B | Ø 39x39 | Stainless steel | 2pcs of ball bearings 6001 | |
RL3945B | Ø 39x45 | Stainless steel | 2pcs of ball bearings 6001 | |
RL3946B | Ø 39x46 | Stainless steel | 2pcs of ball bearings 6001 | 233 |
RL3948B | Ø 39x48.5 | Stainless steel | 2pcs of ball bearings 6001 |
Other dimensions, material or type of bearings is on request.
Bearings
High quality ball bearings. Type 6001-2RS
Part no. | Dimensions (mm) | Width (mm) | Type of bearings | Material |
---|---|---|---|---|
SS 6001-2RS | Ø12x28 | 8 | Ball bearings | Stainless steal |
Other types of bearings on request.

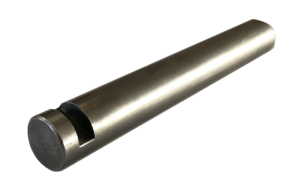

Axles / Pins
Shaft is made from stainless steal 304 or hardened. If you can not find your modification in the table, let us know and we will make it for you.
Part no. | Dimensions (mm) | x (mm) | D (mm) | Material | Description | Weight (g) |
---|---|---|---|---|---|---|
AX1265 | Ø 12x65 | 65 | 12 | Stainless steel | with cutout | |
AX1272 | Ø 12x72 | 72 | 12 | Stainless steel | with cutout | |
AX1276 | Ø 12x76 | 76 | 12 | Stainless steel | with cutout | |
AX1285 | Ø 12x85 | 85 | 12 | Stainless steel | with cutout | |
AX1287 | Ø 12x87 | 87 | 12 | Stainless steel | with cutout | |
AX1292 | Ø 12x92 | 92 | 12 | Stainless steel | with cutout | 79 |
BX1265 | Ø 12x65 | 65 | 12 | Stainless steel | with ribbing | |
BX1272 | Ø 12x72 | 72 | 12 | Stainless steel | with ribbing | |
BX1276 | Ø 12x76 | 76 | 12 | Stainless steel | with ribbing | |
BX1285 | Ø 12x85 | 85 | 12 | Stainless steel | with ribbing | |
BX1287 | Ø 12x87 | 87 | 12 | Stainless steel | with ribbing | |
BX1292 | Ø 12x92 | 92 | 12 | Stainless steel | with ribbing | 80 |
Other dimensions or material type is on request.

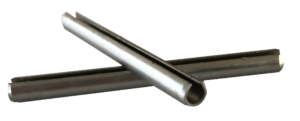

Locking pin
Locking pin for axel pin
Part no. | Dimensions (mm) | Description | Weight (g) |
---|---|---|---|
LP450 | Ø 4x50 | lock pin with cutout | 2,90 |

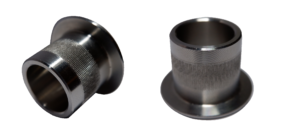

Pipe
Breaking sharp edges - barrel finished made from stainless steel 304 for upper part hole where bottom part is connected.
Part no. | Dimensions (mm) | Height (mm) | Material | Weight (g) |
---|---|---|---|---|
P3016 | Ø 30x16,5 | 20,5 | Stainless steel | 25,70 |
Other dimensions or material type is on request.
