Roller Hooks


Upper part

40 years of product development. We process the aluminium (upper part) for our roller hooks further in a very special way and harden it in a similar way to steel. In this way we achieve a carrier load of up to 500 kg (1,102.31 lbs) for pigs and 1,500 kg (3,306.93 lbs) for cattle and calves. The rollers are made of galvanized steel or stainless steel with maintenance-free stainless steel ball bearings. These products are supplied internationally to machine manufacturers and retailers, and if needed, they can be provided with the client's name.

Features:

  • Upper part: casting of maximum carrier load for 500kg or 1500kg
  • Aluminium hook with the roller made of galvanized steel or stainless steel and stainless steel ball bearings
  • Models with and without auxiliary hooks
  • Insertion of transponder chips
  • Pipe/bushing for bottom hole available
Part no. Type L1 (mm) L2 (mm) Width (mm) Weight (kg) Payload (kg)

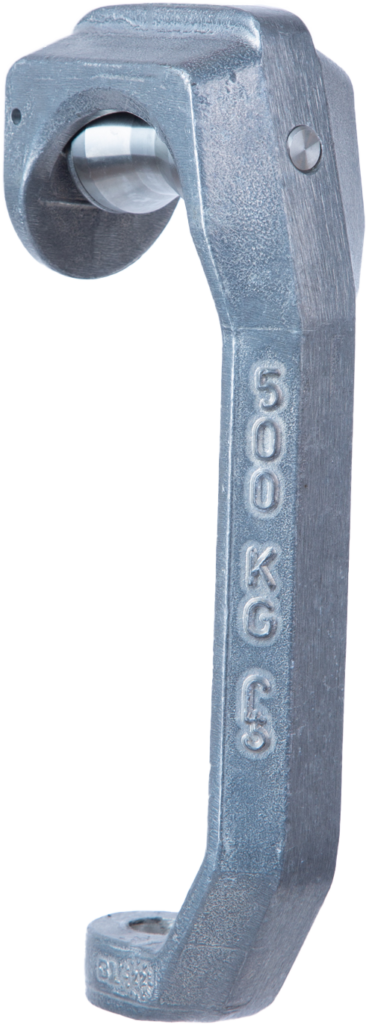

1-1/0 Without side hook 195 265 57 ~1.115 500

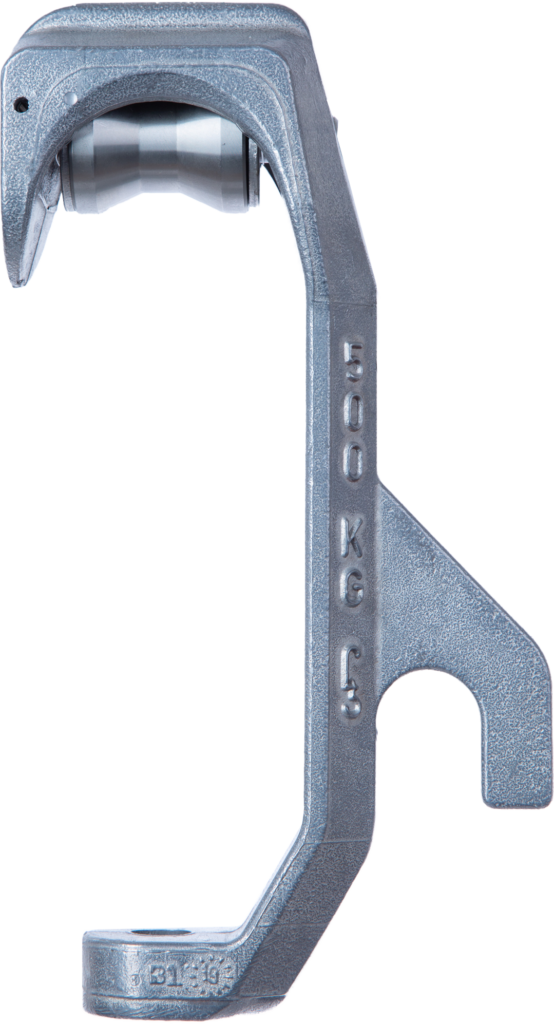

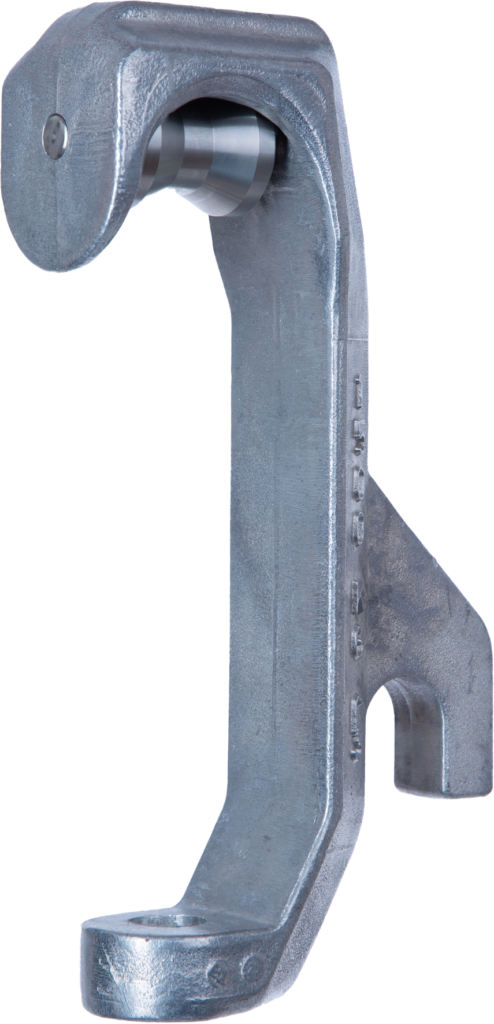

1-1/0k With side hook 195 265 57 ~1.215 500
1-2/0 Without side hook 204 280 60 ~1.445 1500
1-2/0k With side hook 204 280 60 ~1.610 1500

Bottom part

Stainless steel hook can be delivery in various options with requested diameter. Typically Ø 14 mm to Ø 22 mm.

Features:

  • Various diameters available
  • With flat (welded washer) or thread top
  • Ø14 mmm - Ø15 mm with thread M14
  • Ø20 mm - Ø22 mm with thread M16
  • Food grade stainless steel
Part no. ∅ (mm) L1 (mm) Weight (g) Payload (kg) Top
SH114T 14 ~140 250 thread M14
SH115T 15 ~145 340 300 thread M14
SH120T 20 ~220 900 thread M16
SH122T 22 ~230 1050 1500 thread M16
SH114W 14 ~140 250 welded washer
SH115W 15 ~145 340 300 welded washer
SH120W 20 ~220 900 welded washer
SH122W 22 ~230 1050 1500 welded washer




Bottom part

Stainless steel spreading hook with diammeter Ø 22 mm reduced to Ø 17 mm

Features:

  • With thread top M16
  • Food grade stainless steel
Part no. ∅ (mm) L1 (mm) W1 (mm) Top Note
SH222P 22 ~105 480  thread M16 ∅22 mm reduced to ∅17 mm




Bottom part

Stainless steel spreading hook with diammeter Ø 22 mm reduced to Ø 17 mm

Features:

  • With thread top M16
  • Food grade stainless steel



Part no. ∅ (mm) L1 (mm) W1 (mm) Top Note
SH222 22 ~200 480  thread M16 ∅22 mm reduced to ∅17 mm

Roller hook - complete set

Upper part and bottom part can be combinated according your needs. Let us know what combination you need and we will make it for you.

Set contain:

  • Aluminium upper part, roller with 2 bearings, pin, locking pin
  • Stainless steal bottom part single hook or spreader hook
